BYD Super DM Hybrid Technology

BYD Super DM (Dual Mode) Technology represents a groundbreaking leap in intelligent plug-in hybrid (PHEV) technology. Exclusively developed by BYD, it delivers a host of benefits, including enhanced energy efficiency, reduced fuel consumption, improved driving performance, and exceptional comfort.

How is BYD Super DM different?

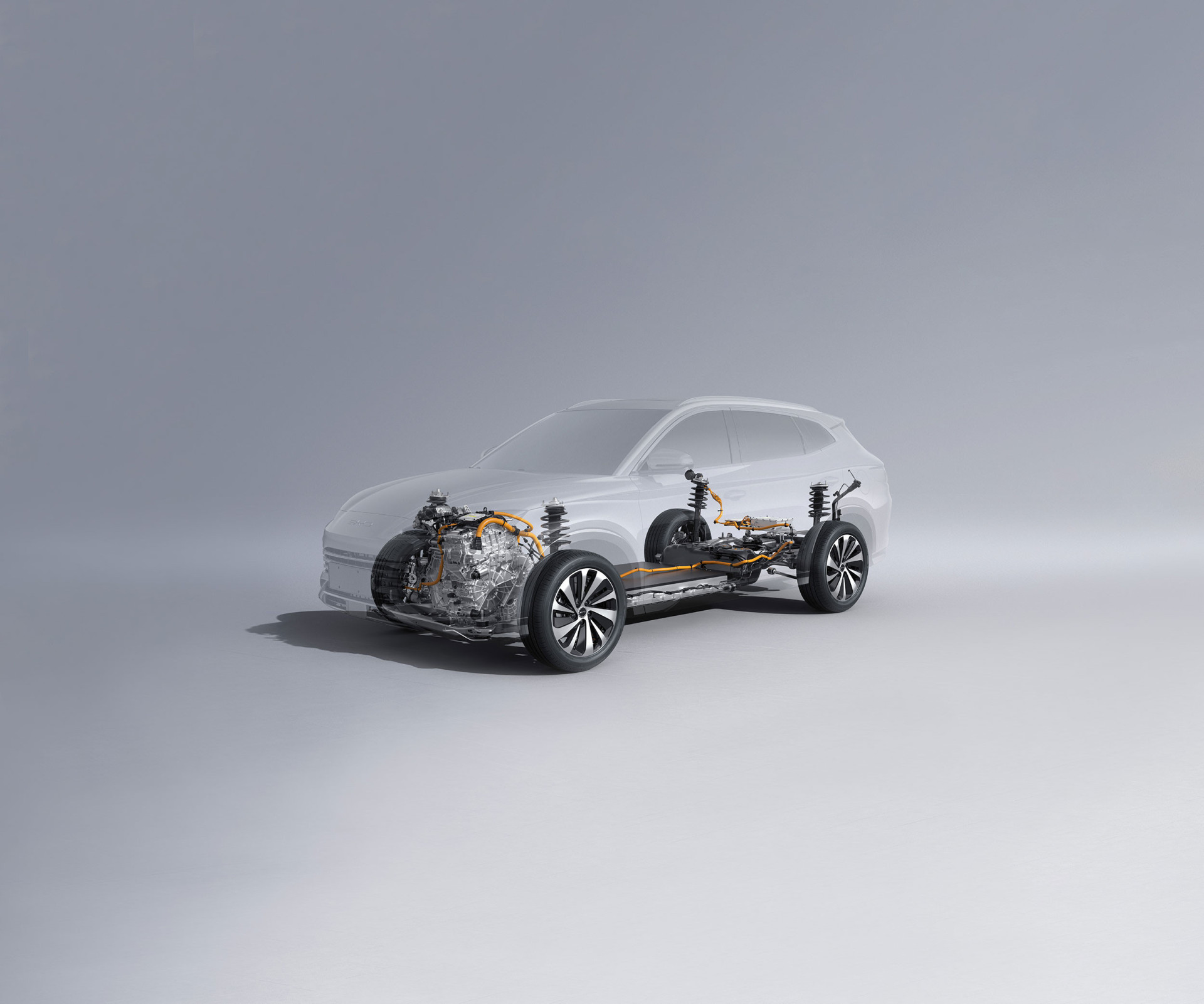

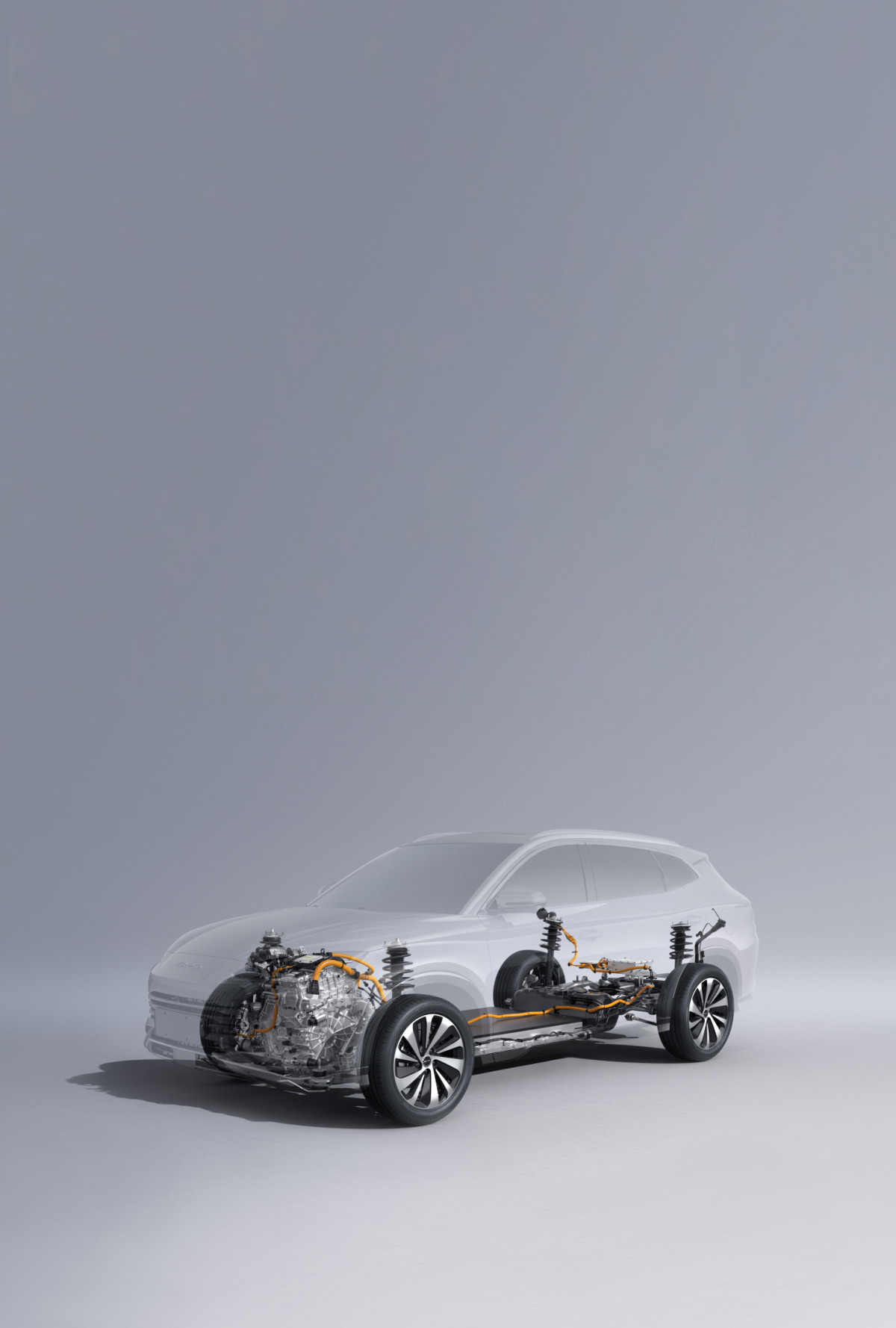

BYD Super DM Technology distinguishes itself from other PHEV systems with its electric-based hybrid architecture at its core. This system primarily relies on a high-power motor and a large-capacity battery, using the engine as supplementary support. This innovative approach prioritises efficiency and seamlessly adjusts to various driving conditions.

What are the benefits?

When fully charged, the vehicle runs entirely on electric power. As the charge depletes, it switches to an ultra-low fuel consumption hybrid mode, prioritising electric propulsion with minimal reliance on fuel. This approach not only enhances energy efficiency but also reduces fuel consumption, offering a more environmentally friendly driving experience. It ensures a quiet, smooth ride while maintaining high power performance and responsiveness.

The three core components of Super DM Technology

BYD Super DM technology is made up of 3 core components:

Electric Hybrid System (EHS)

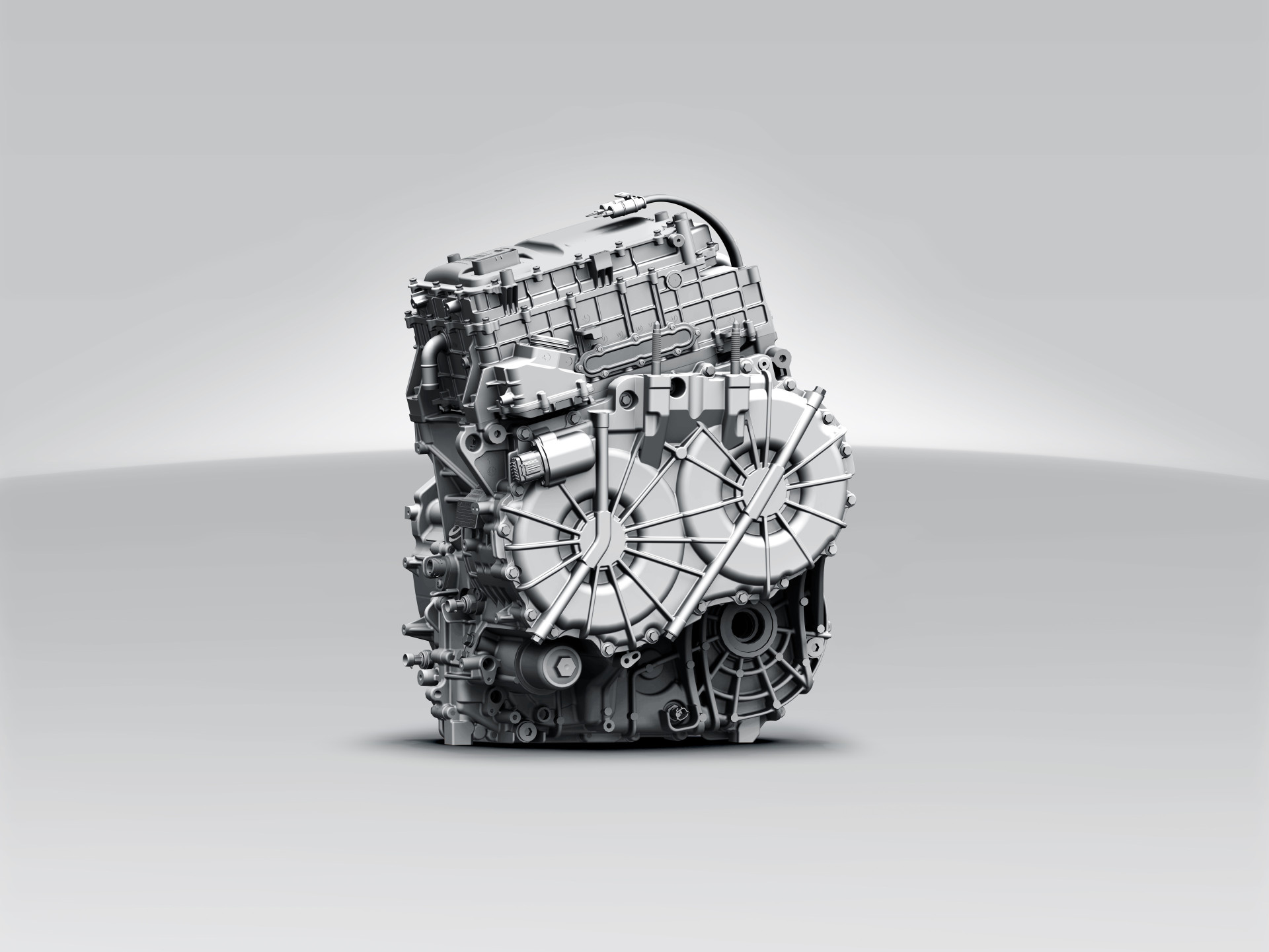

The Electric Hybrid System (EHS) integrates a sophisticated powertrain, combining high-speed dual motors, dual controllers, and advanced oil-cooling technology. This innovative setup boosts motor power density and overall efficiency, delivering enhanced performance.

PEAK POWER:
145 kW / 150 kW

PEAK TORQUE:
300Nm

High-Speed Dual Motors
The EHS features powerful high-speed dual motors, reaching a maximum speed of 15,000 rpm. The P1 motor generates power, while the P3 motor drives the wheels, ensuring outstanding performance across diverse driving conditions.

Hairpin Motor Technology
Utilising cutting-edge hairpin technology, the EHS significantly enhances heat dissipation, achieving peak efficiency of up to 97% and maintaining stability above 90% for the majority of its operation.

Oil Cooling Technology
The system integrates oil cooling technology, directly targeting the heat source to improve dissipation. This increases motor power density to an impressive 5.5 kW/kg.

Highly Integrated Dual-Motor Controller
The IGBT (Insulated Gate Bipolar Transistor) boosts the overall electronic control efficiency to an impressive 98.9%, ensuring precise and reliable performance.

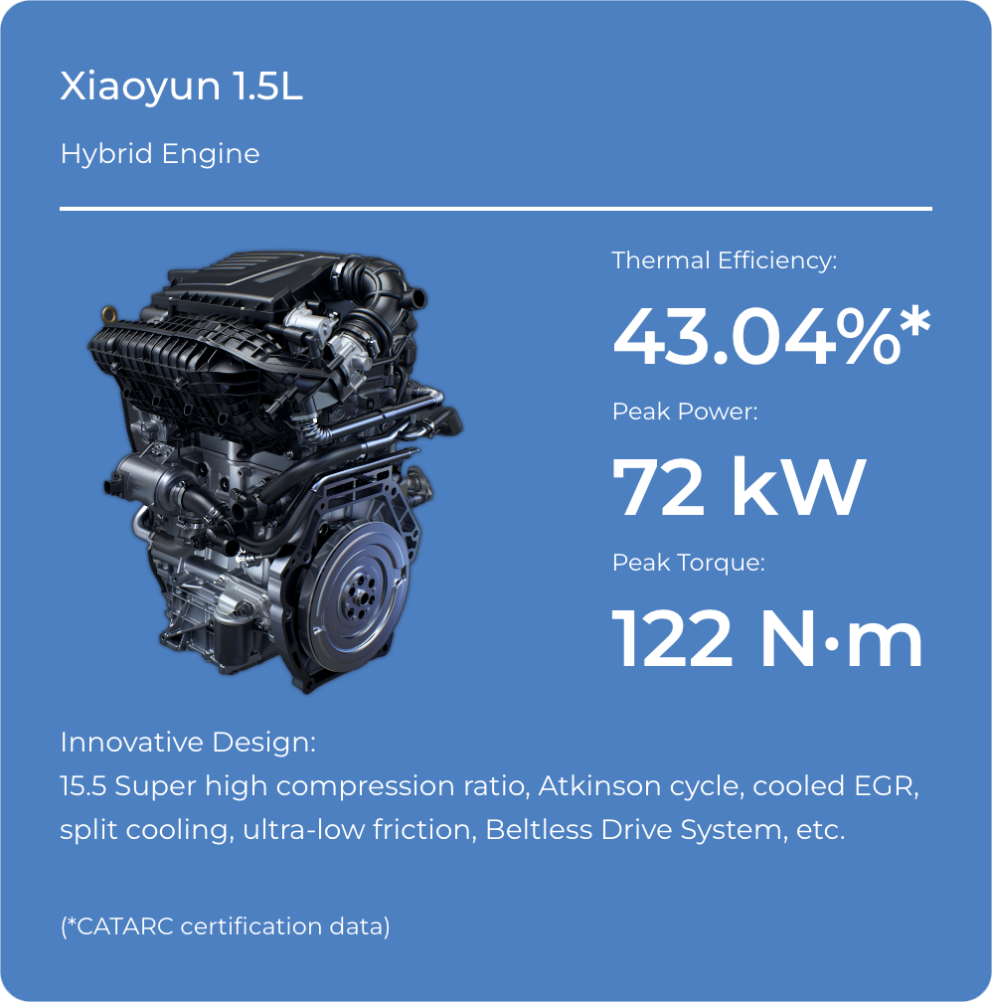

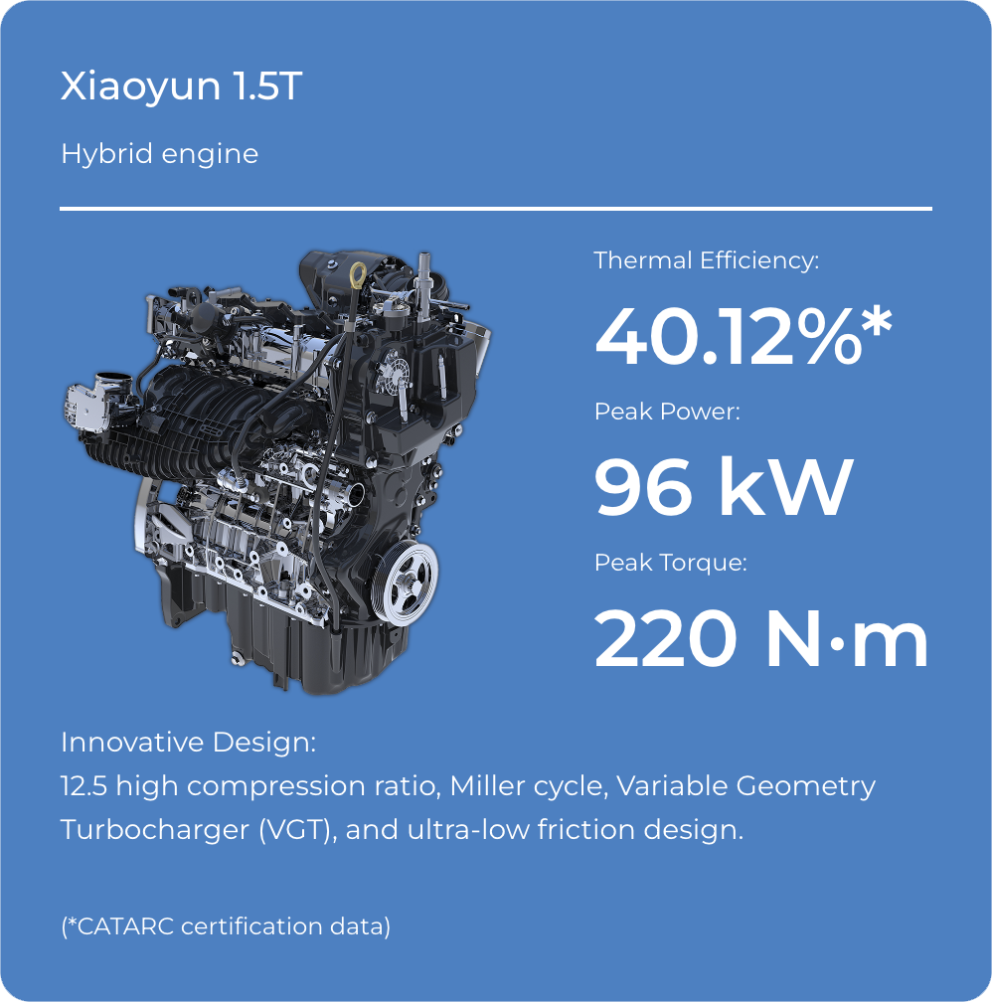

Xiaoyun 1.5L/1.5T Hybrid engine

The Xioayun engine, designed specifically for Super DM Technology, features a cutting-edge design that delivers world-leading thermal efficiency. Its compact and streamlined structure enhances power output, offering impressive peak power and torque.
Graphic showing the individual blades of the BYD Blade Battery

A large capacity Blade Battery

BYD Super DM Technology incorporates a customised version of the renowned Blade Battery, specifically tailored for the hybrid platform. These specialised Blade Batteries start at 18.3 kWh, offering a pure electric range of up to 43 miles. Key advantages include:

Enhanced Safety
The Blade Battery has undergone the rigorous Nail Penetration Test without igniting or emitting smoke, ensuring top-tier safety.

Optimised Strength
Each cell is organised into a single pack, acting as a structural beam that resists external forces. The aluminium honeycomb-like structure, reinforced by high-strength panels on both the top and bottom, provides enhanced vertical rigidity.

Extended Range
Compared to conventional battery packs, the Blade Battery utilises space 50% more efficiently, increasing energy density and extending the vehicle's range.

Longer Lifecycle
With a lifespan of over 5,000 charge and discharge cycles, the Blade Battery offers exceptional longevity.

Additional Technology

Three Power Supply Modes

Powered by the electric motor in 90% of driving conditions.

A Superb All-Round Experience

BYD Super DM Technology transforms eco-friendly travel by combining energy efficiency and fuel economy with quick, responsive acceleration and a quiet, smooth ride.

Economical: Energy-Efficient, Low Fuel Consumption

BYD Super DM Technology is engineered for outstanding energy efficiency and minimal fuel consumption, making it an ideal low-carbon solution for environmentally conscious drivers. The specialised Xiaoyun 1.5L hybrid engine boasts an industry-leading thermal efficiency of 43.04%*. With a high-efficiency zone of up to 80%, this technology delivers impressive fuel consumption as low as 6 litres per 62 miles. A high-performance electric motor with an exceptional 97% efficiency ensures economical operation, offering a pure electric driving range of up to 43 miles. The combined system delivers an impressive total range of over 621 miles, even under varying conditions. (*CATARC certification data)

Fast: Exhilarating, Responsive, and Dynamic

BYD Super DM Technology combines power and efficiency to elevate every drive. With a total system output of up to 238 kW, expect a thrilling driving experience marked by high performance, rapid acceleration, and agile handling. The 0-100 km/h sprint rivals that of a 2.0T engine, while the electric motor boasts a lightning-fast response time of just 10 milliseconds, ensuring exceptional precision and an engaging driving experience.

Quiet: Creating a Serene Driving Experience

The electric-focused design at the heart of BYD Super DM Technology guarantees a peaceful and smooth ride. With noise levels kept to a minimum, the vehicle effortlessly glides through both urban streets and highways, offering the ideal balance of power, efficiency, and superior NVH (Noise, Vibration, and Harshness) performance for a truly serene journey.

Smooth: Unmatched Ride Comfort

BYD Super DM Technology offers an exceptionally smooth driving experience, comparable to that of a pure electric vehicle. The Electric Hybrid System is designed for simplicity, delivering seamless gear transitions that provide effortless driving and ultimate comfort on every journey.
